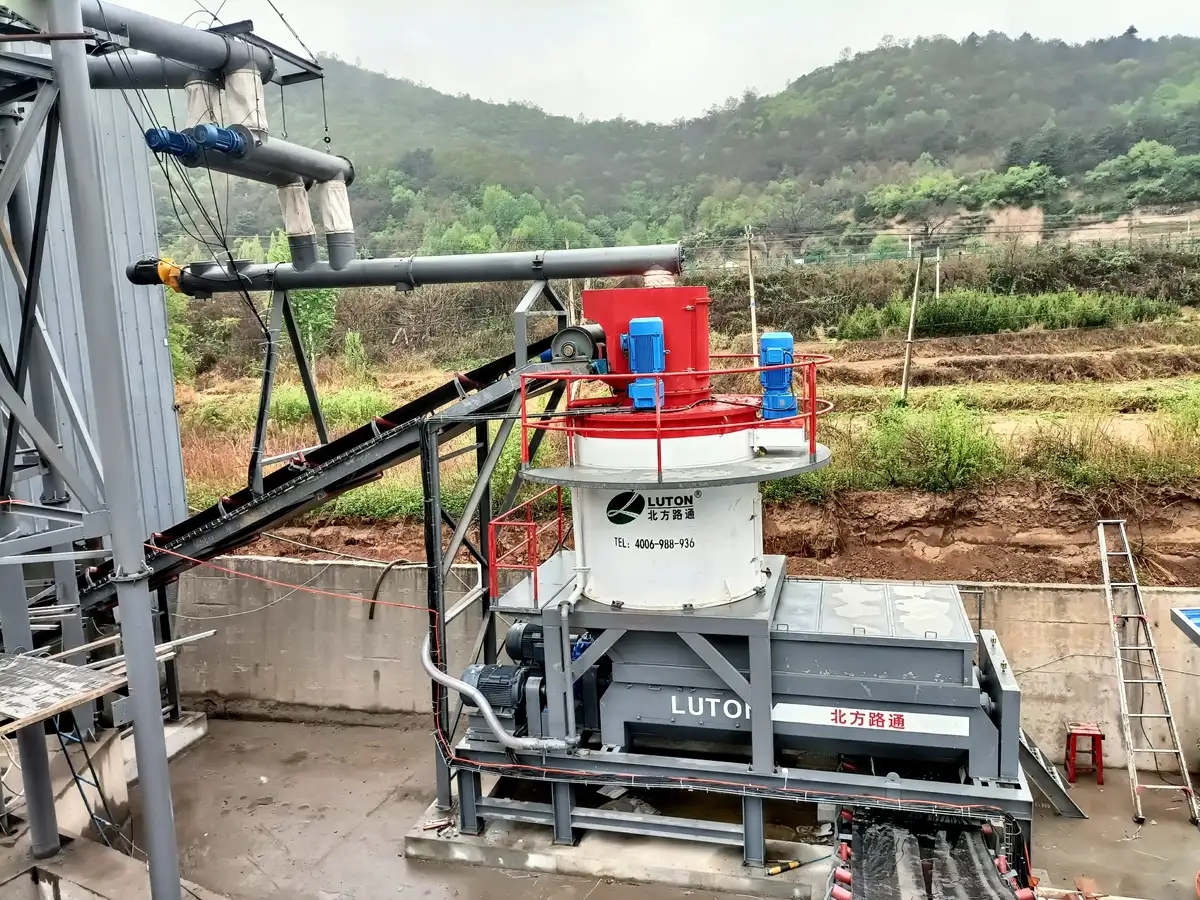

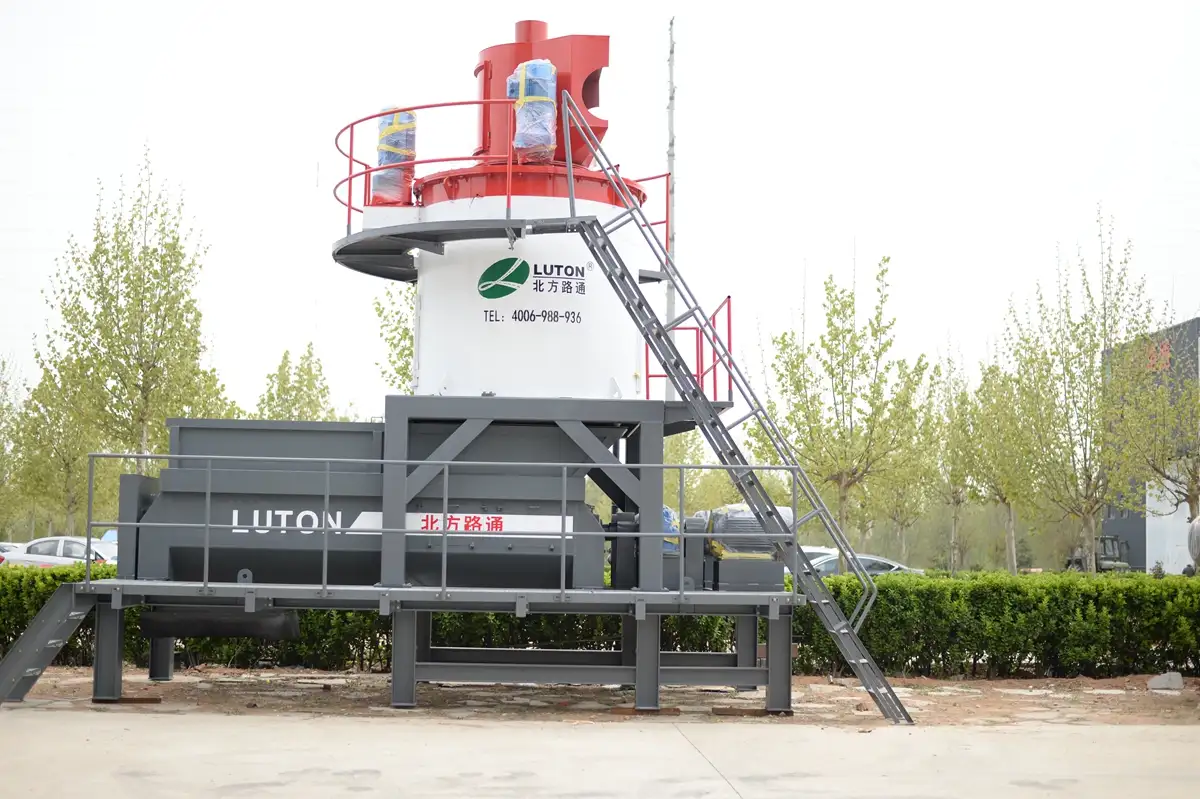

Vertical and horizontal stabilized soil mixer
The environmentally friendly vertical and horizontal integrated mixer is a new type of stabilized soil mixer independently developed and launched by our company based on more than 20 years of experience in the production of stabilized soil mixers and the current market situation, focusing on the concepts of energy saving and efficiency improvement, economic and environmental protection, uniform mixing, and safety without cleaning the pot. We have applied for a national patent and formulated a group standard (standard number: T/TMAC 050-2022). The scientific and technological achievements of this project have been rated as internationally advanced.
This equipment combines vertical stirring and horizontal stirring to make the materials collide and rub evenly throughout the whole process, thus improving the strength of the mixture under the same ratio.
Technical Parameters
Specifications | LWCB600 | LWCB800 | LWCB1000 |
Theoretical yield | 600t/h | 800t/h | 1000t/h |
Motor power | 2*37KW+3*22KW | 2*55KW+3*22KW | 2*75KW+3*22KW |
Main motor power supply | AC380V | AC380V | AC380V |
Mixing blade material | High chromium cast iron | High chromium cast iron | High chromium cast iron |
Overall dimensions of the machine (length*width*height) | 7500*3700*6300 | 7500*3700*6300 | 7500*3700*6300 |

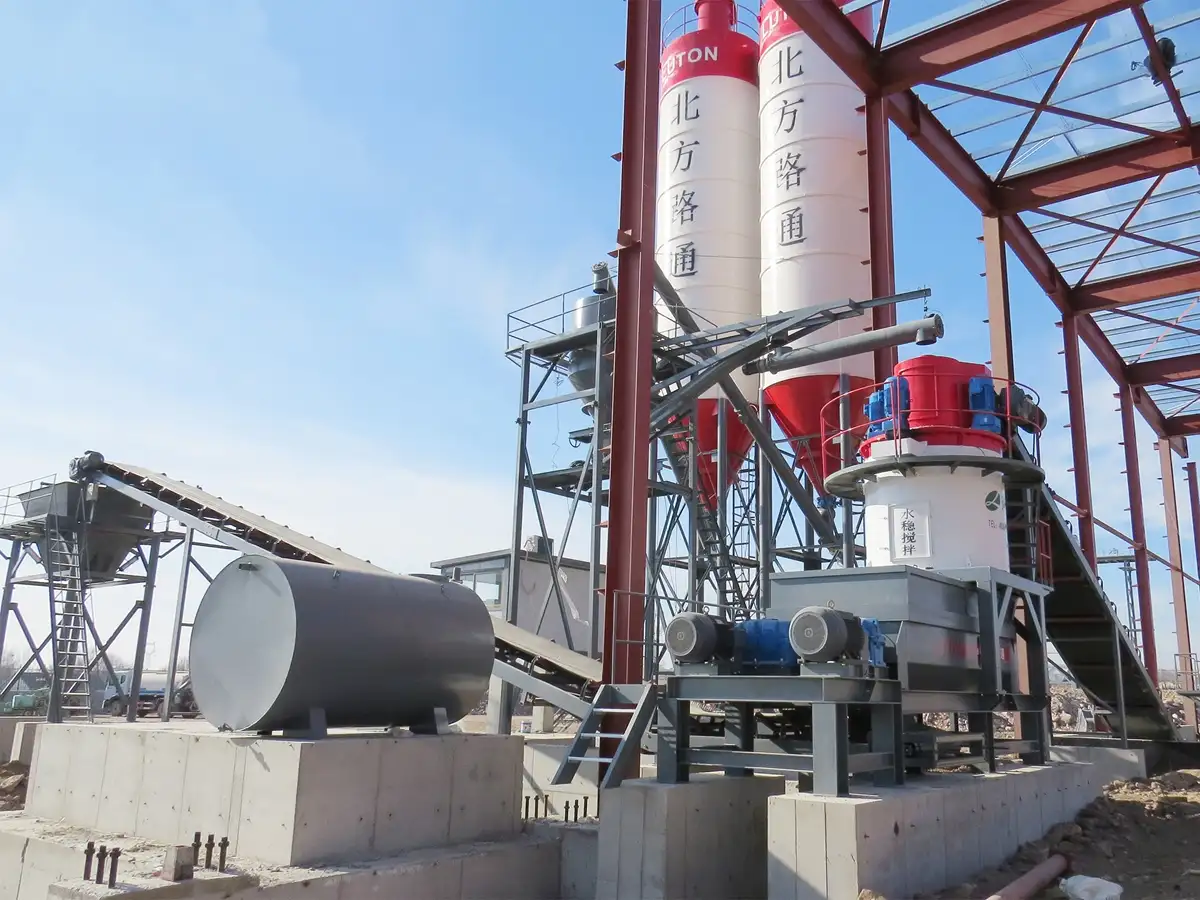

This model is only suitable for stabilized soil mixing plants. If you need other working condition models, please consult our company.
If the content is modified, no further notice will be given.
Innovation
1. Optimize the design of the appearance structure and mixing method of the vertical mixer.
2. Develop a multi-channel spiral distributor, and the material enters the mixing drum and spreads out in an umbrella shape, so that the aggregate and powder are fully mixed and the mixing is more uniform.
3. Develop a ring spray device to ensure that the material can be evenly sprayed with water, improve the uniformity of the finished material and enhance the dust suppression function.
4. Design multi-layer arc-shaped upward blades, which are not easy to stick to the material; the material collides with the blades step by step during the falling process, so that the water, powder, coarse and fine aggregates are fully and evenly dispersed.
Core Advantages
Energy saving and efficiency improvement
Change the mixing method, use gravity potential energy to speed up the discharge speed, reduce energy loss, effectively increase mixing capacity, and reduce construction costs.
Mix the finished product evenly
Multi-channel spirals evenly distribute materials, water is sprayed around aggregates, powder wraps wet aggregates, and mixed materials impact each other, so that the finished material reaches an ideal uniformity.
Environmental safety
The unique feeding method is conducive to the recovery of dust; the unique spraying device improves the dust suppression function and reduces waste discharge; the arc-shaped blade design is not easy to stick to the material, reducing the risk of frequent manual cleaning of the pot.
Easy maintenance
All maintenance areas are equipped with platforms, which provide intuitive visibility and ample operating space for easy inspection and maintenance.
Reasonable design
The first-stage vertical stirring makes the material dispersed evenly, and the second-stage horizontal forced stirring makes the material fully mixed;
The whole machine has a reasonable structure and occupies a small area.
